ALD1115PAL

Part NumberALD1115PAL

ManufacturerAdvanced Linear Devices Inc.

DescriptionMOSFET N/P-CH 10.6V 8DIP

DatasheetALD1115

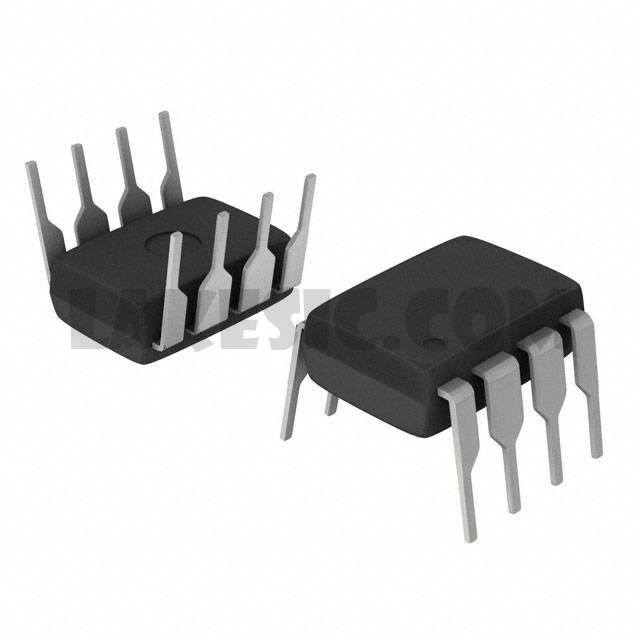

Package / Case8-DIP (0.300", 7.62mm)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel Complementary 10.6V 500mW Through Hole 8-PDIP

To learn about the specification of ALD1115PAL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ALD1115PAL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ALD1115PAL.
We are offering ALD1115PAL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ALD1115PAL - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	ALD1115
Standard Package	50
Manufacturer	Advanced Linear Devices Inc.
Series	-
Packaging	Tube
Part Status	Active
FET Type	N and P-Channel Complementary
FET Feature	Standard
Drain to Source Voltage (Vdss)	10.6V
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	1800Ohm @ 5V
Vgs(th) (Max) @ Id	1V @ 1µA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	3pF @ 5V
Power - Max	500mW
Operating Temperature	0°C ~ 70°C (TJ)
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-PDIP
