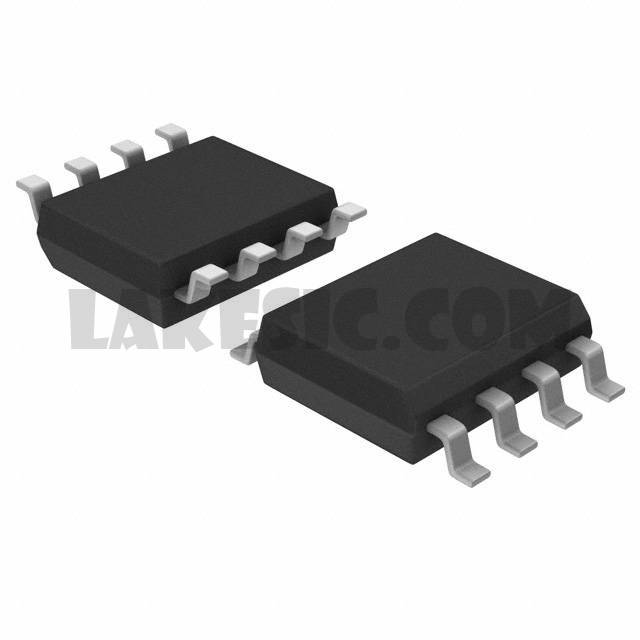

ALD1116SAL


ALD1116SAL

Part NumberALD1116SAL

Manufacturer

Description

Datasheet

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

ALD1116SAL - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package50
ManufacturerAdvanced Linear Devices Inc.
Series-
PackagingTube
Part StatusActive
FET Type2 N-Channel (Dual) Matched Pair
FET FeatureStandard
Drain to Source Voltage (Vdss)10.6V
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs500Ohm @ 5V
Vgs(th) (Max) @ Id1V @ 1µA
Gate Charge (Qg) (Max) @ Vgs-
Input Capacitance (Ciss) (Max) @ Vds3pF @ 5V
Power - Max500mW
Operating Temperature0°C ~ 70°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
