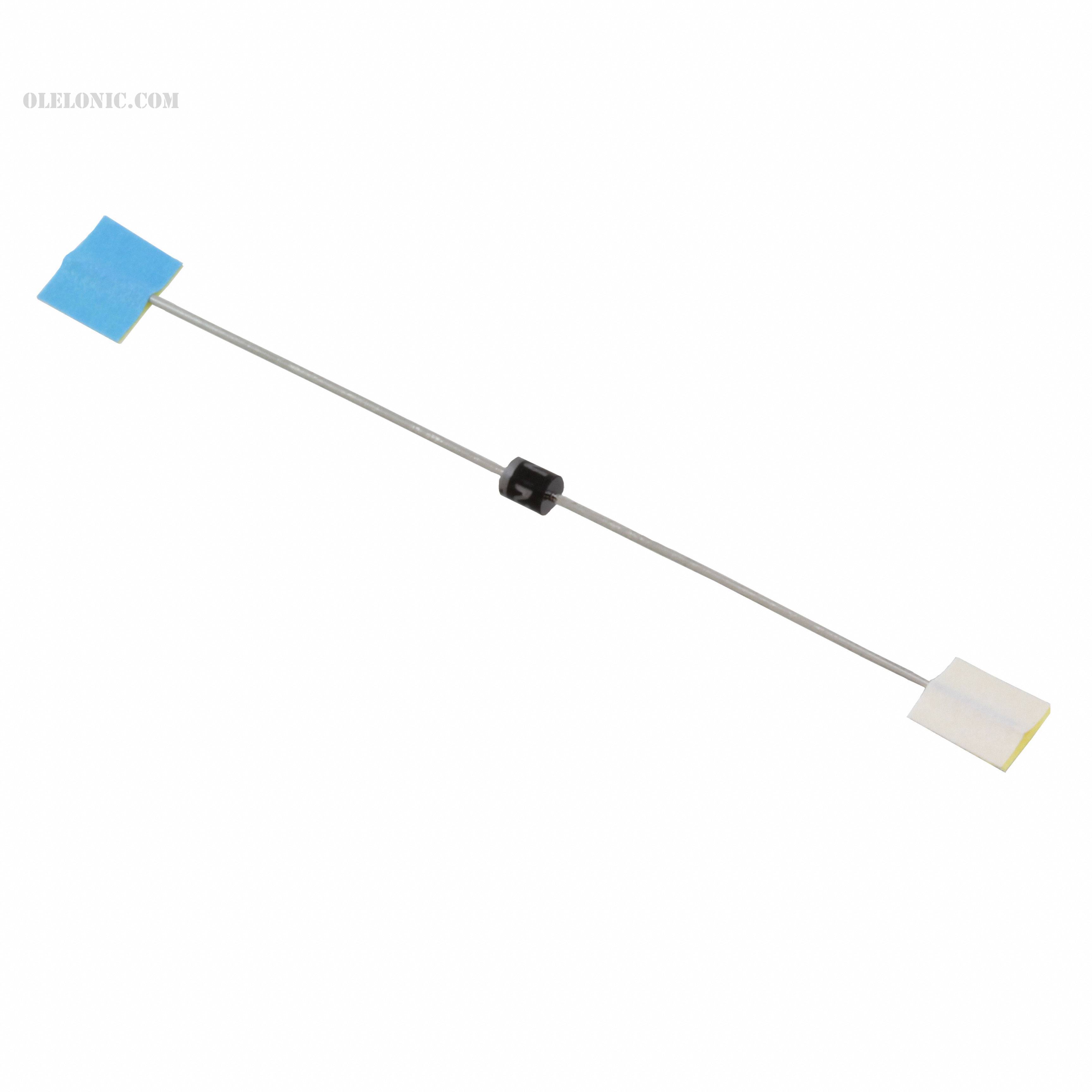

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	AM01Z
Standard Package	3000
Manufacturer	Sanken
Series	-
Packaging	Tape & Box (TB)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	980mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10µA @ 200V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	-
Operating Temperature - Junction	-40°C ~ 150°C
