AO6604

AO6604

Part NumberAO6604

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET N/P-CH 20V 6-TSOP

DatasheetAO6604

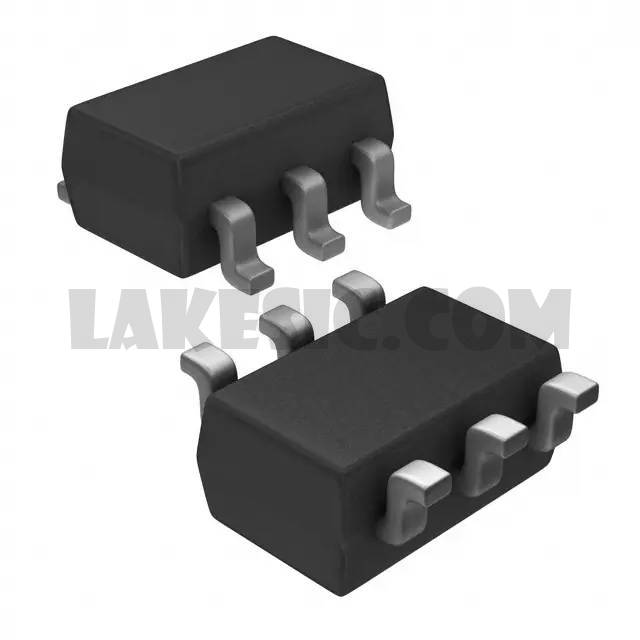

Package / CaseSC-74, SOT-457

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel Complementary 20V 3.4A, 2.5A 1.1W Surface Mount 6-TSOP

To learn about the specification of AO6604, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AO6604 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AO6604.
We are offering AO6604 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AO6604 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	AO6604
Standard Package	1
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel Complementary
FET Feature	Logic Level Gate, 4.5V Drive
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3.4A, 2.5A
Rds On (Max) @ Id, Vgs	65mOhm @ 3.4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	3.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	320pF @ 10V
Power - Max	1.1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-74, SOT-457
Supplier Device Package	6-TSOP
