AOC2806

Part NumberAOC2806

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET 2N-CH 20V

DatasheetAOC2806

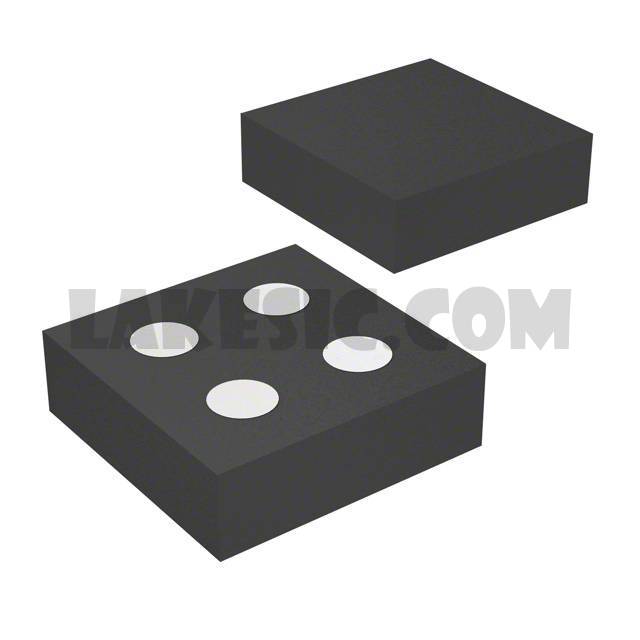

Package / Case4-XDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 700mW Surface Mount 4-AlphaDFN (1.7x1.7)

To learn about the specification of AOC2806, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AOC2806 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AOC2806.
We are offering AOC2806 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AOC2806 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	AOC2806
Standard Package	1
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	AlphaMOS
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Standard
Drain to Source Voltage (Vdss)	-
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	12.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	700mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-XDFN
Supplier Device Package	4-AlphaDFN (1.7x1.7)
