AON2290

AON2290

Part NumberAON2290

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET N CH 100V 4.5A DFN 2X2B

DatasheetAON2290

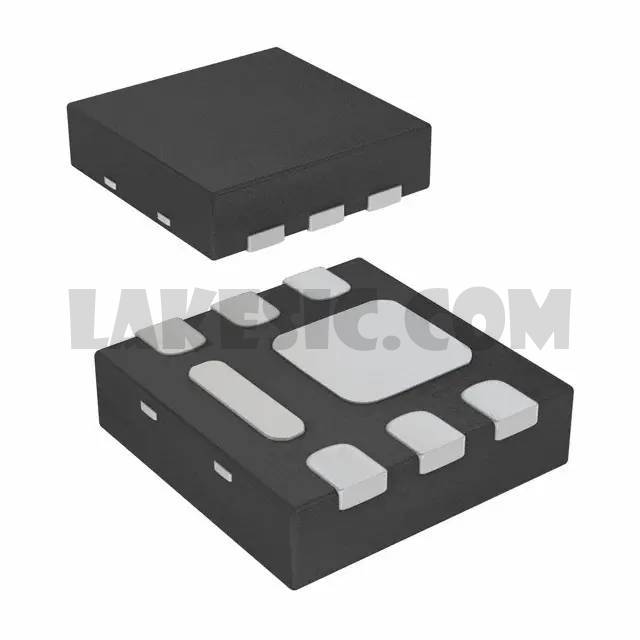

Package / Case6-UDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 4.5A (Ta) 2.8W (Ta) Surface Mount 6-DFN-EP (2x2)

To learn about the specification of AON2290, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AON2290 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AON2290.
We are offering AON2290 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AON2290 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AON2290
Standard Package	1
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	72mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id	2.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	415pF @ 50V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-DFN-EP (2x2)
Package / Case	6-UDFN Exposed Pad
