AON2801L#A

Part NumberAON2801L#A

ManufacturerAlpha & Omega Semiconductor Inc.

To learn about the specification of AON2801L#A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AON2801L#A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AON2801L#A.
We are offering AON2801L#A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Standard Package	1
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Bulk
Part Status	Obsolete
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3A
Rds On (Max) @ Id, Vgs	120mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	700pF @ 10V
Power - Max	1.5W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

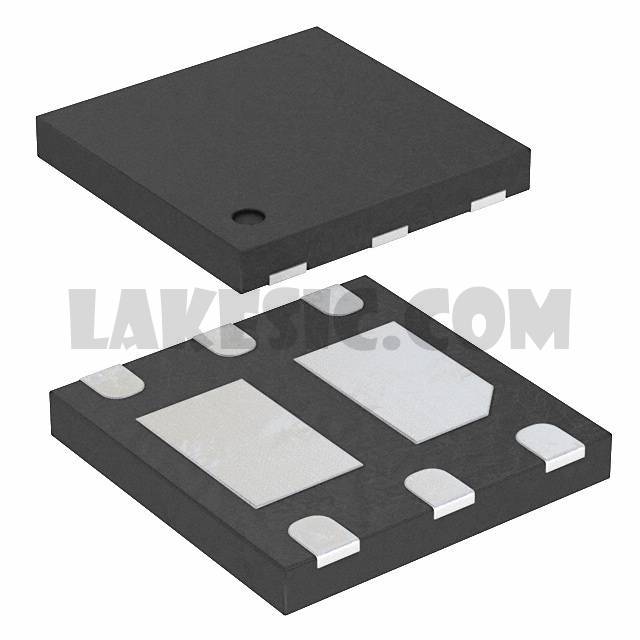

Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-DFN (2x2)
