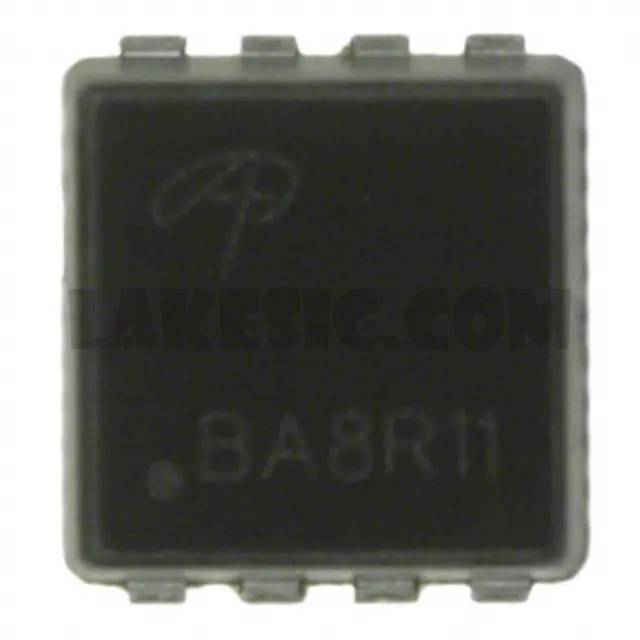

AON6792


AON6792

Part NumberAON6792

Manufacturer

Description

Datasheet

Package / Case8-PowerSMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

AON6792 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package3000
ManufacturerAlpha & Omega Semiconductor Inc.
SeriesSRFET™
PackagingTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C44A (Ta), 85A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs49nC @ 10V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds3110pF @ 15V
FET Feature-
Power Dissipation (Max)6.2W (Ta), 48W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (5x6)
Package / Case8-PowerSMD, Flat Leads
