AON6816

AON6816

Part NumberAON6816

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET 2N-CH 30V 17A DFN5X6

DatasheetAON6816

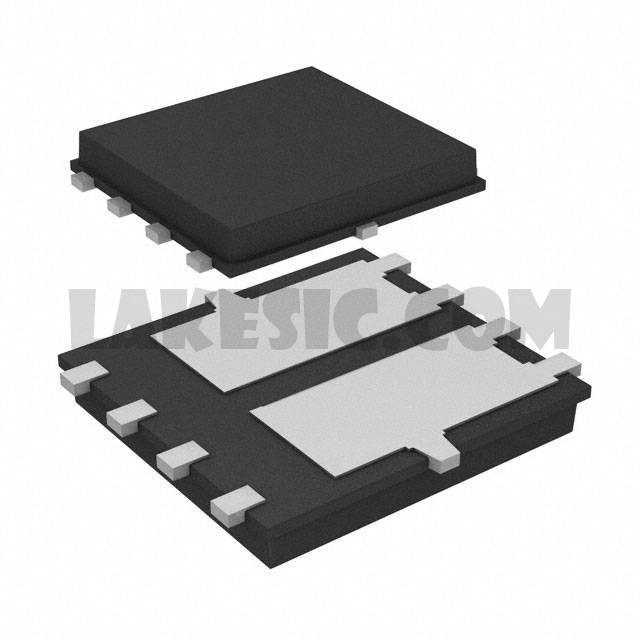

Package / Case8-PowerSMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 30V 17A 2.8W Surface Mount 8-DFN-EP (5x6)

To learn about the specification of AON6816, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AON6816 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AON6816.
We are offering AON6816 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AON6816 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	AON6816
Standard Package	1
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	17A
Rds On (Max) @ Id, Vgs	6.2mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	45nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1540pF @ 15V
Power - Max	2.8W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerSMD, Flat Leads
Supplier Device Package	8-DFN-EP (5x6)
