APT100GN120B2G
APT100GN120B2G

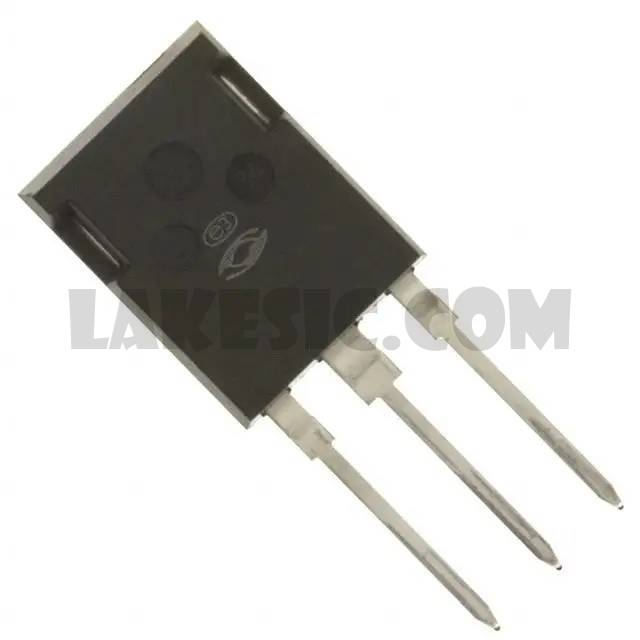

Part Number APT100GN120B2G Description IGBT 1200V 245A 960W TMAX Package / Case TO-247-3 VariantUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 1200V 245A 960W Through Hole
To learn about the specification of APT100GN120B2G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT100GN120B2G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT100GN120B2G.
We are offering APT100GN120B2G for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
APT100GN120B2G - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet APT100GN120B2(G) Standard Package 1 Manufacturer Microsemi Corporation Series - Packaging Tube Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 1200V Current - Collector (Ic) (Max) 245A Current - Collector Pulsed (Icm) 300A Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 100A Power - Max 960W Switching Energy 11mJ (on), 9.5mJ (off) Input Type Standard Gate Charge 540nC Td (on/off) @ 25°C 50ns/615ns Test Condition 800V, 100A, 1Ohm, 15V Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Variant
