APT13003EU-G1

APT13003EU-G1

Part NumberAPT13003EU-G1

ManufacturerDiodes Incorporated

DescriptionTRANS NPN 465V 1.5A TO126

DatasheetAPT13003E

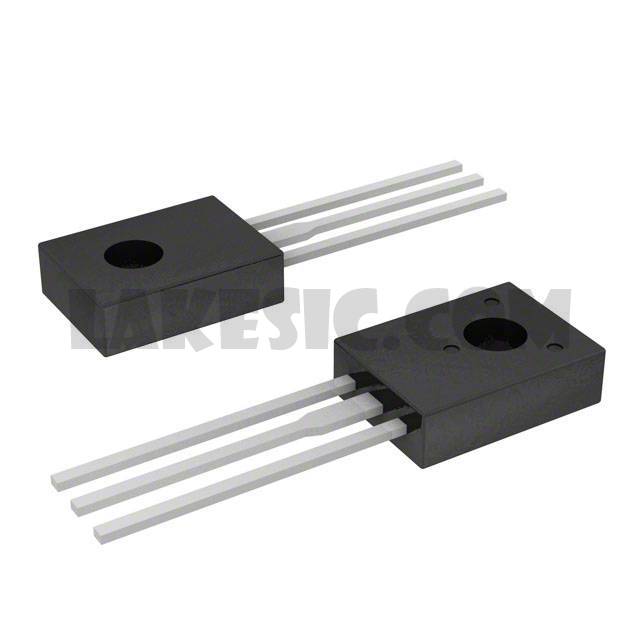

Package / CaseTO-225AA, TO-126-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 465V 1.5A 4MHz 20W Through Hole TO-126

To learn about the specification of APT13003EU-G1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT13003EU-G1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT13003EU-G1.
We are offering APT13003EU-G1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APT13003EU-G1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	APT13003E
Standard Package	40000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1.5A
Voltage - Collector Emitter Breakdown (Max)	465V
Vce Saturation (Max) @ Ib, Ic	400mV @ 250mA, 1A
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	13 @ 500mA, 2V
Power - Max	20W
Frequency - Transition	4MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-225AA, TO-126-3
Supplier Device Package	TO-126
