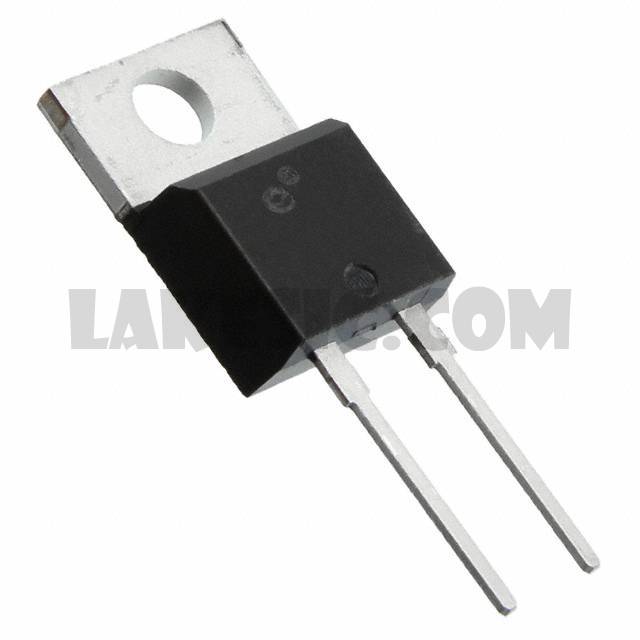

APT15DQ120KG

APT15DQ120KG

Part NumberAPT15DQ120KG

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 1.2KV 15A TO220

DatasheetAPT15DQ120K(G)

Package / CaseTO-220-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1200V 15A Through Hole TO-220 [K]

To learn about the specification of APT15DQ120KG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT15DQ120KG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT15DQ120KG.
We are offering APT15DQ120KG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APT15DQ120KG - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	APT15DQ120K(G)
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	15A
Voltage - Forward (Vf) (Max) @ If	3.3V @ 15A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	240ns
Current - Reverse Leakage @ Vr	100µA @ 1200V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	TO-220-2
Supplier Device Package	TO-220 [K]
Operating Temperature - Junction	-55°C ~ 175°C
