APT25GN120SG
APT25GN120SG

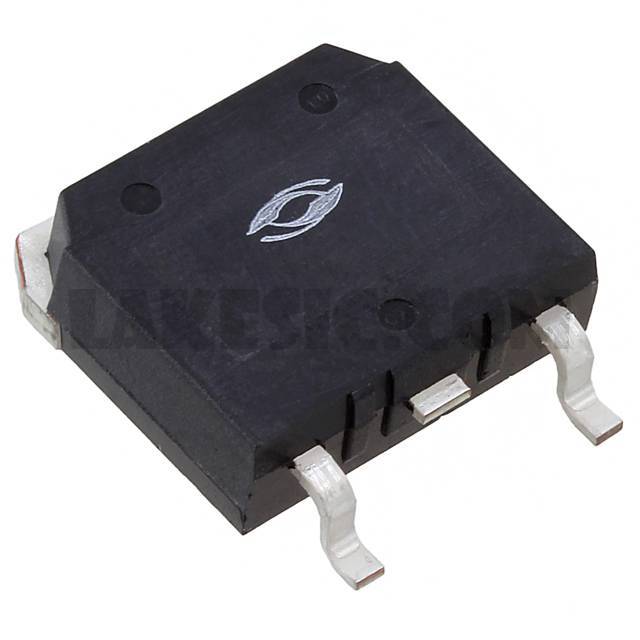

Part Number APT25GN120SG Description IGBT 1200V 67A 272W D3PAK Package / Case TO-268-3, D³Pak (2 Leads + Tab), TO-268AAUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 1200V 67A 272W Surface Mount D3Pak
To learn about the specification of APT25GN120SG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT25GN120SG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT25GN120SG.
We are offering APT25GN120SG for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
APT25GN120SG - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet APT25GN120 Series Standard Package 1 Manufacturer Microsemi Corporation Series - Packaging Tube Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 1200V Current - Collector (Ic) (Max) 67A Current - Collector Pulsed (Icm) 75A Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 25A Power - Max 272W Switching Energy - Input Type Standard Gate Charge 155nC Td (on/off) @ 25°C 22ns/280ns Test Condition 800V, 25A, 1Ohm, 15V Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Surface Mount Package / Case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA Supplier Device Package D3Pak
