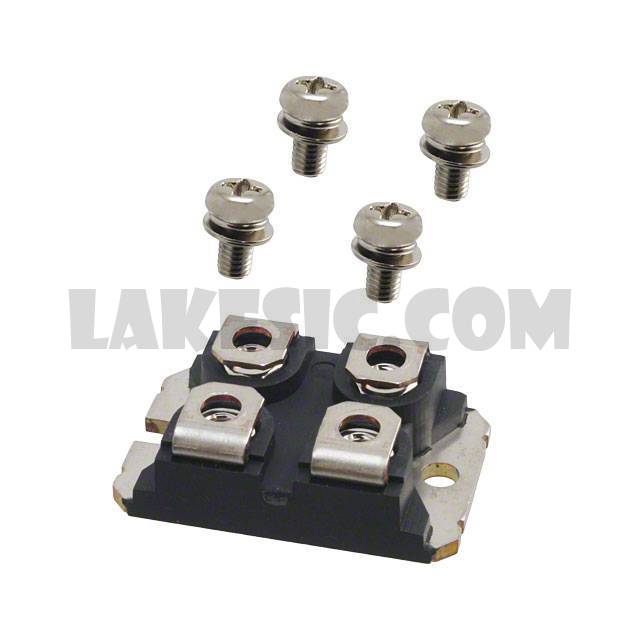

APT2X61S20J

Part NumberAPT2X61S20J

ManufacturerMicrosemi Corporation

DescriptionDIODE MODULE 200V 75A ISOTOP

DatasheetAPT2X61S20J

Package / CaseISOTOP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 2 Independent Schottky 200V 75A Chassis Mount ISOTOP

To learn about the specification of APT2X61S20J, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT2X61S20J with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT2X61S20J.
We are offering APT2X61S20J for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APT2X61S20J - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	APT2X61S20J
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Tube
Part Status	Active
Diode Configuration	2 Independent
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io) (per Diode)	75A
Voltage - Forward (Vf) (Max) @ If	900mV @ 60A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	55ns
Current - Reverse Leakage @ Vr	1mA @ 200V
Mounting Type	Chassis Mount
Package / Case	ISOTOP
Supplier Device Package	ISOTOP®
