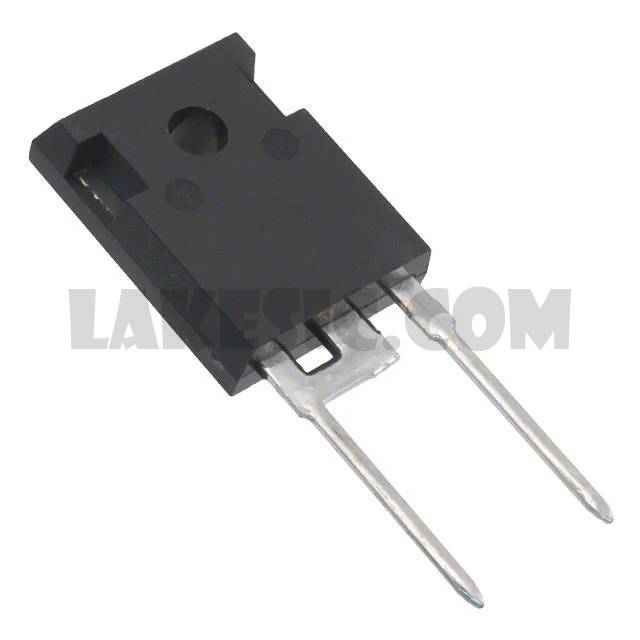

APT30DQ120BG

APT30DQ120BG

Part NumberAPT30DQ120BG

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 1.2KV 30A TO247

DatasheetAPT30DQ120B,S(G)

Package / CaseTO-247-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1200V 30A Through Hole TO-247 [B]

To learn about the specification of APT30DQ120BG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT30DQ120BG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT30DQ120BG.
We are offering APT30DQ120BG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APT30DQ120BG - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	APT30DQ120B,S(G)
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Max) @ If	3.3V @ 30A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	320ns
Current - Reverse Leakage @ Vr	100µA @ 1200V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	TO-247-2
Supplier Device Package	TO-247 [B]
Operating Temperature - Junction	-55°C ~ 175°C
