APT40GR120S

Part NumberAPT40GR120S

ManufacturerMicrosemi Corporation

DescriptionIGBT 1200V 88A 500W D3PAK

DatasheetAPT40GR120B/S

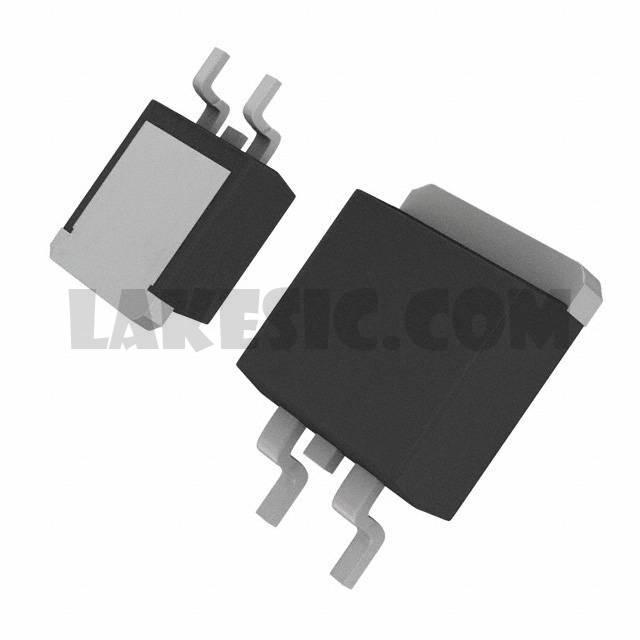

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT NPT 1200V 88A 500W Surface Mount D3Pak

To learn about the specification of APT40GR120S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT40GR120S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT40GR120S.
We are offering APT40GR120S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APT40GR120S - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Single

Datasheet

APT40GR120B/S

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Tube

Part Status

Active

IGBT Type

NPT

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

88A

Current - Collector Pulsed (Icm)

160A

Vce(on) (Max) @ Vge, Ic

3.2V @ 15V, 40A

Power - Max

500W

Switching Energy

1.38mJ (on), 906µJ (off)

Input Type

Standard

Gate Charge

210nC

Td (on/off) @ 25°C

22ns/163ns

Test Condition

600V, 40A, 4.3Ohm, 15V

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Supplier Device Package

D3Pak
