APT8020JLL

APT8020JLL

Part NumberAPT8020JLL

ManufacturerMicrosemi Corporation

DescriptionMOSFET N-CH 800V 33A SOT-227

DatasheetAPT8020JLL

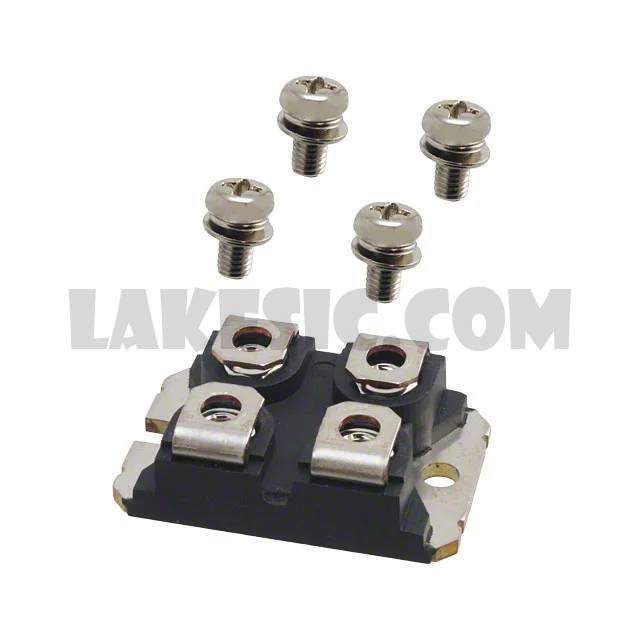

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 800V 33A (Tc) 520W (Tc) Chassis Mount ISOTOP®

To learn about the specification of APT8020JLL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT8020JLL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT8020JLL.
We are offering APT8020JLL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APT8020JLL - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	APT8020JLL
Standard Package	1
Manufacturer	Microsemi Corporation
Series	POWER MOS 7®
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800V
Current - Continuous Drain (Id) @ 25°C	33A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	200mOhm @ 16.5A, 10V
Vgs(th) (Max) @ Id	5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs	195nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	5200pF @ 25V
FET Feature	-
Power Dissipation (Max)	520W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	ISOTOP®
Package / Case	SOT-227-4, miniBLOC
