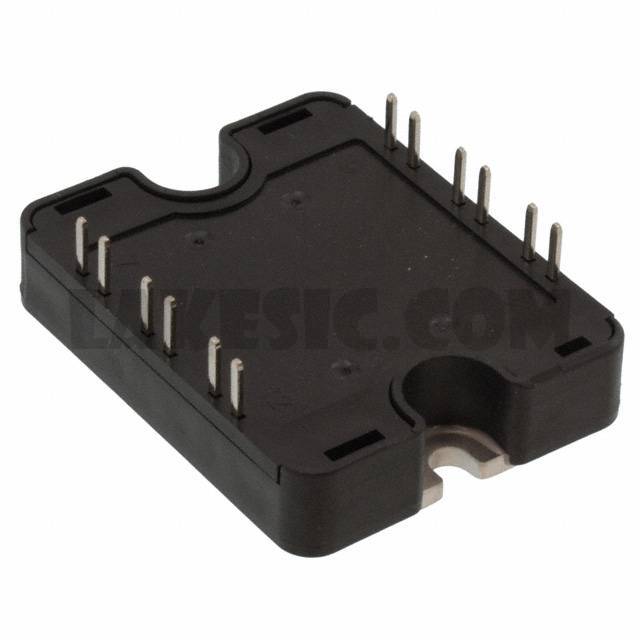

APTC60AM45BC1G

Part NumberAPTC60AM45BC1G

ManufacturerMicrosemi Corporation

DescriptionMOSFET 3N-CH 600V 49A SP1

DatasheetAPTC60AM45BC1G

Package / CaseSP1

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 3 N Channel (Phase Leg + Boost Chopper) 600V 49A 250W Chassis Mount SP1

To learn about the specification of APTC60AM45BC1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTC60AM45BC1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTC60AM45BC1G.
We are offering APTC60AM45BC1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTC60AM45BC1G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

APTC60AM45BC1G

Standard Package

Manufacturer

Microsemi Corporation

Series

CoolMOS™

Packaging

Bulk

Part Status

Active

FET Type

3 N Channel (Phase Leg + Boost Chopper)

FET Feature

Standard

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

49A

Rds On (Max) @ Id, Vgs

45mOhm @ 24.5A, 10V

Vgs(th) (Max) @ Id

3.9V @ 3mA

Gate Charge (Qg) (Max) @ Vgs

150nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

7200pF @ 25V

Power - Max

250W

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP1

Supplier Device Package

SP1
