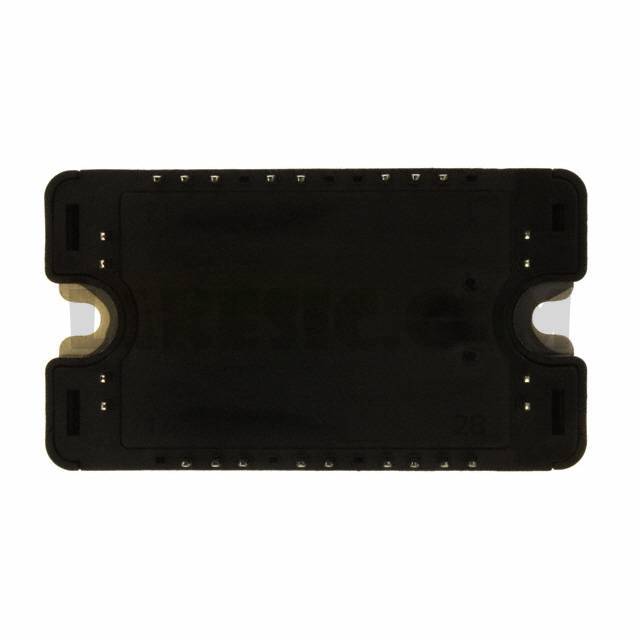

APTCV90TL12T3G

Part NumberAPTCV90TL12T3G

ManufacturerMicrosemi Corporation

DescriptionPOWER MODULE IGBT QUAD 900V SP3

DatasheetAPTCV90TL12T3G

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Three Level Inverter - IGBT, FET 1200V 80A 280W Chassis Mount SP3

To learn about the specification of APTCV90TL12T3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTCV90TL12T3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTCV90TL12T3G.
We are offering APTCV90TL12T3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTCV90TL12T3G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTCV90TL12T3G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

Trench Field Stop

Configuration

Three Level Inverter - IGBT, FET

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

80A

Power - Max

280W

Vce(on) (Max) @ Vge, Ic

2.2V @ 15V, 50A

Current - Collector Cutoff (Max)

1mA

Input Capacitance (Cies) @ Vce

2.77nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP3

Supplier Device Package

SP3
