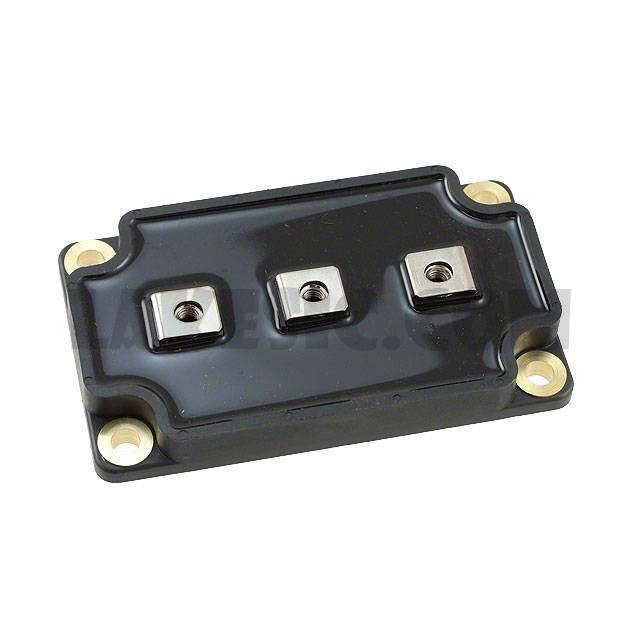

APTDF400KK20G

Part NumberAPTDF400KK20G

ManufacturerMicrosemi Corporation

DescriptionDIODE MODULE 200V 500A SP6

DatasheetAPTDF400KK20G

Package / CaseLP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Standard 200V 500A Chassis Mount LP4

To learn about the specification of APTDF400KK20G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTDF400KK20G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTDF400KK20G.
We are offering APTDF400KK20G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTDF400KK20G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	APTDF400KK20G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io) (per Diode)	500A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 400A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	60ns
Current - Reverse Leakage @ Vr	750µA @ 200V
Mounting Type	Chassis Mount
Package / Case	LP4
Supplier Device Package	SP6
