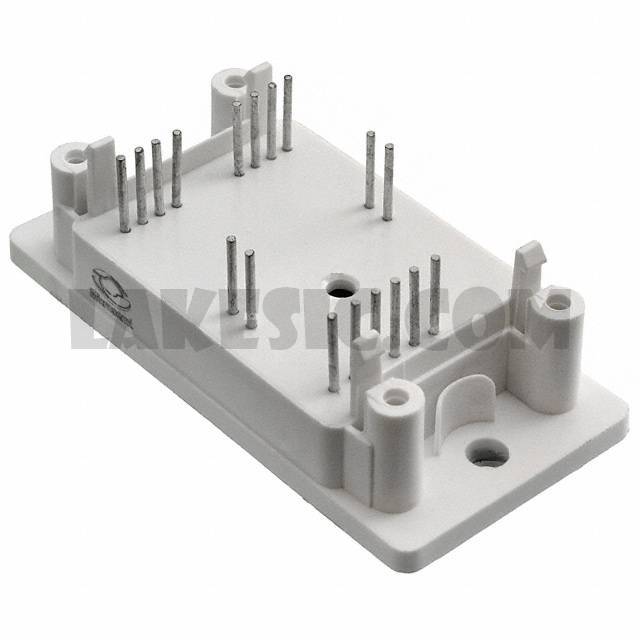

APTGF100A1202G

Part NumberAPTGF100A1202G

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT NPT PHASE LEG SP2

DatasheetAPTGF100A1202G

Package / CaseSP2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Half Bridge 1200V 135A 568W Chassis Mount SP2

To learn about the specification of APTGF100A1202G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF100A1202G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF100A1202G.
We are offering APTGF100A1202G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF100A1202G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF100A1202G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

135A

Power - Max

568W

Vce(on) (Max) @ Vge, Ic

3.7V @ 15V, 100A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

6.5nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP2

Supplier Device Package

SP2
