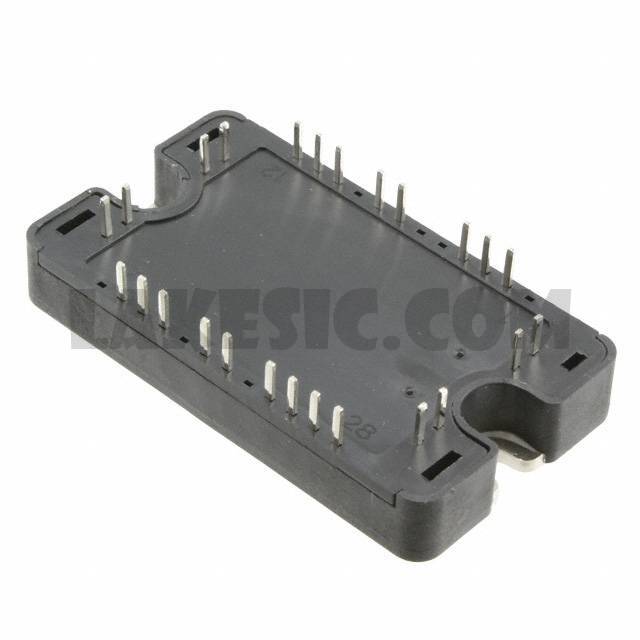

APTGF100A120T3WG

Part NumberAPTGF100A120T3WG

ManufacturerMicrosemi Corporation

To learn about the specification of APTGF100A120T3WG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF100A120T3WG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF100A120T3WG.
We are offering APTGF100A120T3WG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Obsolete
IGBT Type	NPT
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	130A
Power - Max	657W
Vce(on) (Max) @ Vge, Ic	3.7V @ 15V, 100A
Current - Collector Cutoff (Max)	250µA
Input Capacitance (Cies) @ Vce	6.5nF @ 25V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-
Mounting Type	Chassis Mount
Package / Case	SP3
Supplier Device Package	SP3
