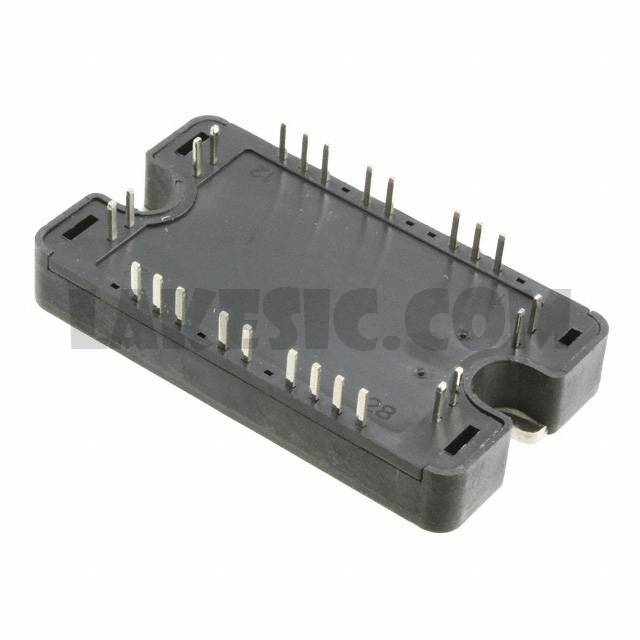

APTGF150A120T3WG

Part NumberAPTGF150A120T3WG

ManufacturerMicrosemi Corporation

DescriptionIGBT NPT PHASE 1200V 210A SP3

DatasheetAPTGF150A120T3WG

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Half Bridge 1200V 210A 961W Chassis Mount SP3

To learn about the specification of APTGF150A120T3WG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF150A120T3WG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF150A120T3WG.
We are offering APTGF150A120T3WG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF150A120T3WG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF150A120T3WG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

210A

Power - Max

961W

Vce(on) (Max) @ Vge, Ic

3.7V @ 15V, 150A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

9.3nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP3

Supplier Device Package

SP3
