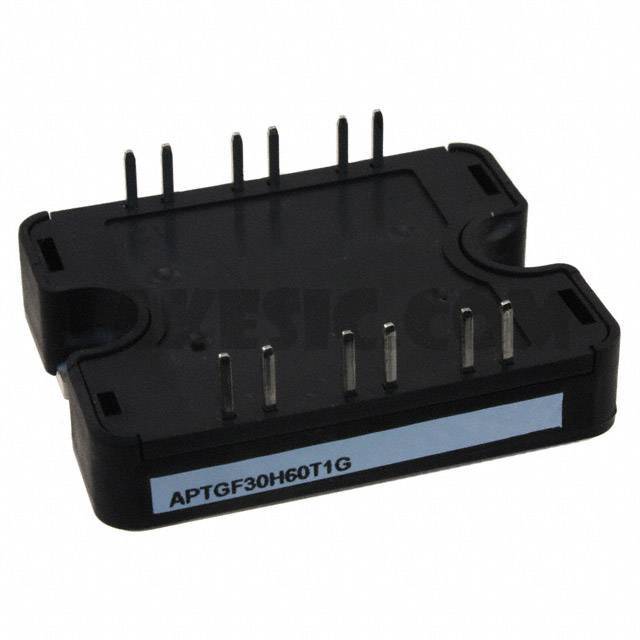

APTGF30H60T1G

Part NumberAPTGF30H60T1G

ManufacturerMicrosemi Corporation

DescriptionIGBT MODULE NPT FULL BRIDGE SP1

DatasheetAPTGF30H60T1G

Package / CaseSP1

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Full Bridge Inverter 600V 42A 140W Chassis Mount SP1

To learn about the specification of APTGF30H60T1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF30H60T1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF30H60T1G.
We are offering APTGF30H60T1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF30H60T1G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF30H60T1G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Full Bridge Inverter

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

42A

Power - Max

140W

Vce(on) (Max) @ Vge, Ic

2.45V @ 15V, 30A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

1.35nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP1

Supplier Device Package

SP1
