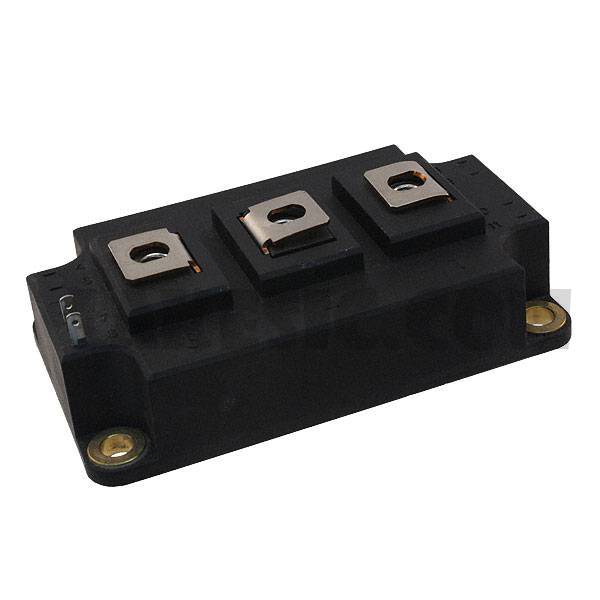

APTGF330DA60D3G

Part NumberAPTGF330DA60D3G

ManufacturerMicrosemi Corporation

DescriptionIGBT 600V 460A 1400W D3

DatasheetAPTGF330DA60D3G_Rev2

Package / CaseD-3 Module

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Single 600V 460A 1400W Chassis Mount D3

To learn about the specification of APTGF330DA60D3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF330DA60D3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF330DA60D3G.
We are offering APTGF330DA60D3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF330DA60D3G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF330DA60D3G_Rev2

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

460A

Power - Max

1400W

Vce(on) (Max) @ Vge, Ic

2.5V @ 15V, 400A

Current - Collector Cutoff (Max)

750µA

Input Capacitance (Cies) @ Vce

18nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

D-3 Module

Supplier Device Package
