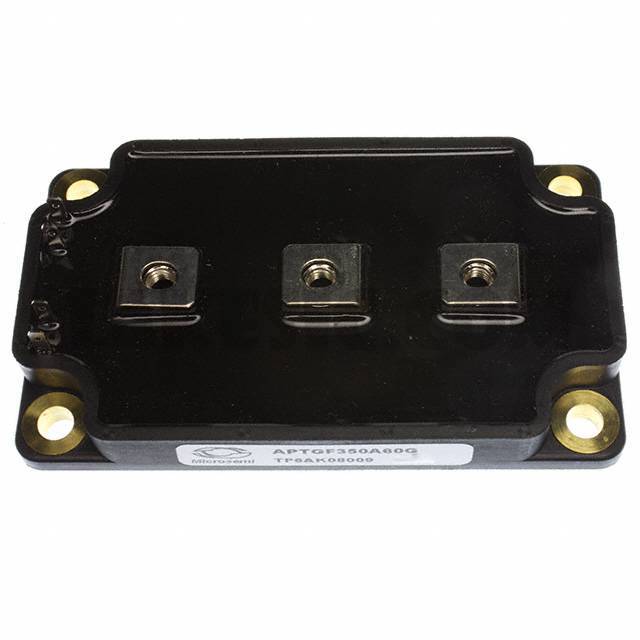

APTGF350A60G

Part NumberAPTGF350A60G

ManufacturerMicrosemi Corporation

DescriptionPOWER MODULE IGBT 600V 350A SP6

DatasheetAPTGF350A60G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Half Bridge 600V 430A 1562W Chassis Mount SP6

To learn about the specification of APTGF350A60G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF350A60G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF350A60G.
We are offering APTGF350A60G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF350A60G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF350A60G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

430A

Power - Max

1562W

Vce(on) (Max) @ Vge, Ic

2.5V @ 15V, 360A

Current - Collector Cutoff (Max)

200µA

Input Capacitance (Cies) @ Vce

17.2nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
