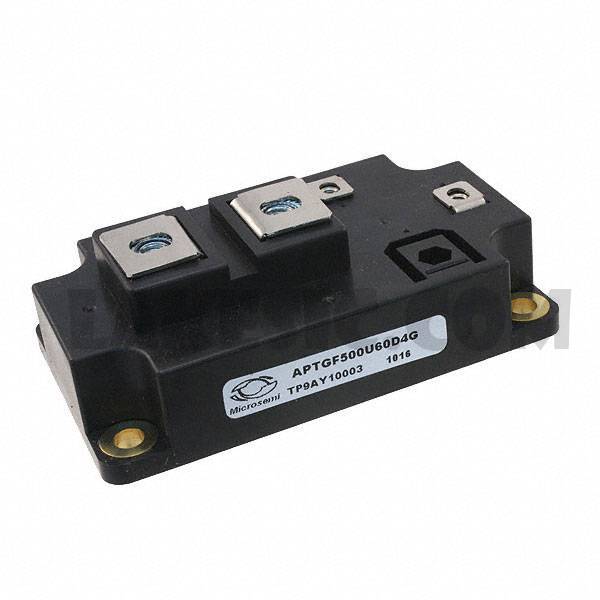

APTGF500U60D4G

Part NumberAPTGF500U60D4G

ManufacturerMicrosemi Corporation

DescriptionIGBT 600V 625A 2000W D4

DatasheetAPTGF500U60D4G

Package / CaseD4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Single 600V 625A 2000W Chassis Mount D4

To learn about the specification of APTGF500U60D4G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF500U60D4G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF500U60D4G.
We are offering APTGF500U60D4G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF500U60D4G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF500U60D4G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

625A

Power - Max

2000W

Vce(on) (Max) @ Vge, Ic

2.45V @ 15V, 500A

Current - Collector Cutoff (Max)

500µA

Input Capacitance (Cies) @ Vce

26nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

Supplier Device Package
