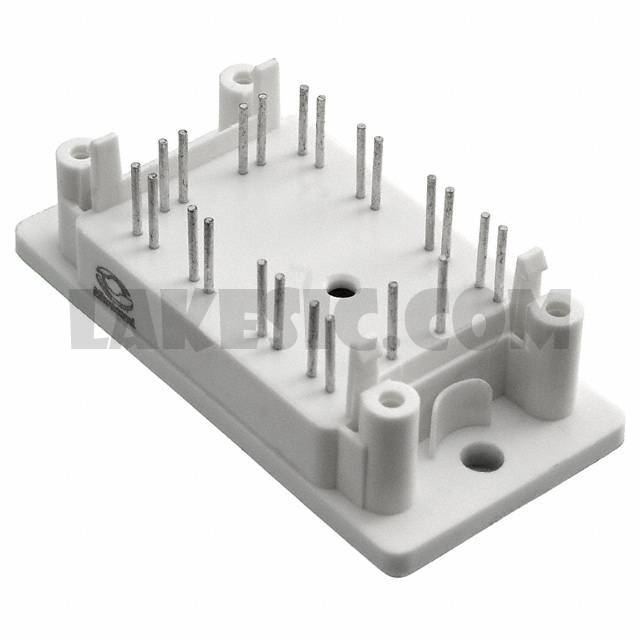

APTGF50H60T2G

Part NumberAPTGF50H60T2G

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT NPT FULL BRDG SP2

DatasheetAPTGF50H60T2G

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Full Bridge Inverter 600V 65A 250W Chassis Mount SP3

To learn about the specification of APTGF50H60T2G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF50H60T2G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF50H60T2G.
We are offering APTGF50H60T2G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF50H60T2G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF50H60T2G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Full Bridge Inverter

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

65A

Power - Max

250W

Vce(on) (Max) @ Vge, Ic

2.45V @ 15V, 50A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

2.2nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP3

Supplier Device Package

SP3
