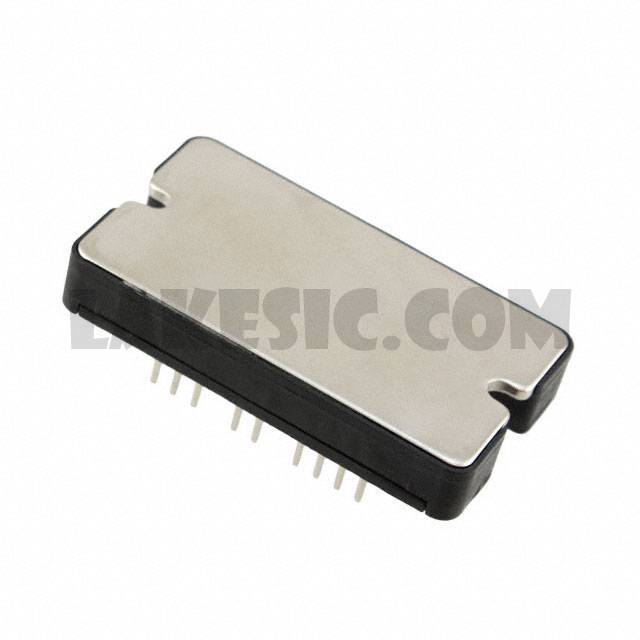

APTGF50X60T3G

Part NumberAPTGF50X60T3G

ManufacturerMicrosemi Corporation

DescriptionIGBT MODULE NPT 3PH BRIDGE SP3

DatasheetAPTGF50X60T3G

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Three Phase Inverter 600V 65A 250W Chassis Mount SP3

To learn about the specification of APTGF50X60T3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF50X60T3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF50X60T3G.
We are offering APTGF50X60T3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF50X60T3G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF50X60T3G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Three Phase Inverter

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

65A

Power - Max

250W

Vce(on) (Max) @ Vge, Ic

2.45V @ 15V, 50A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

2.2nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP3

Supplier Device Package

SP3
