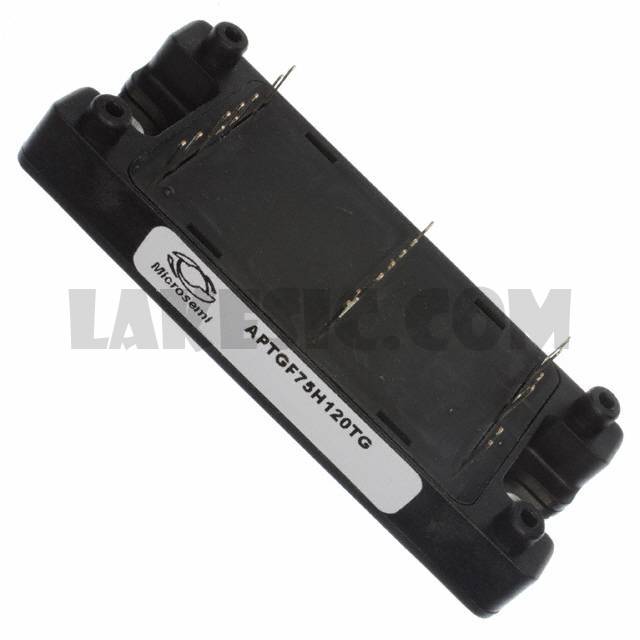

APTGF75H120TG

Part NumberAPTGF75H120TG

ManufacturerMicrosemi Corporation

DescriptionPOWER MODULE IGBT 1200V 75A SP4

DatasheetAPTGF75H120TG

Package / CaseSP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Full Bridge Inverter 1200V 100A 500W Chassis Mount SP4

To learn about the specification of APTGF75H120TG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF75H120TG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF75H120TG.
We are offering APTGF75H120TG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF75H120TG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF75H120TG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Full Bridge Inverter

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

100A

Power - Max

500W

Vce(on) (Max) @ Vge, Ic

3.7V @ 15V, 75A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

5.1nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP4

Supplier Device Package

SP4
