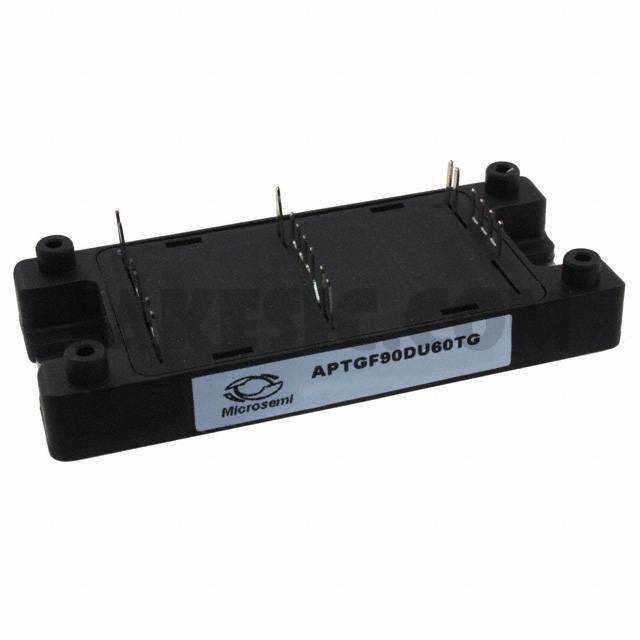

APTGF90DU60TG

Part NumberAPTGF90DU60TG

ManufacturerMicrosemi Corporation

DescriptionIGBT MODULE NPT DUAL SOURCE SP4

DatasheetAPTGF90DU60TG

Package / CaseSP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Dual, Common Source 600V 110A 416W Chassis Mount SP4

To learn about the specification of APTGF90DU60TG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF90DU60TG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF90DU60TG.
We are offering APTGF90DU60TG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF90DU60TG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF90DU60TG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Dual, Common Source

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

110A

Power - Max

416W

Vce(on) (Max) @ Vge, Ic

2.5V @ 15V, 90A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

4.3nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP4

Supplier Device Package

SP4
