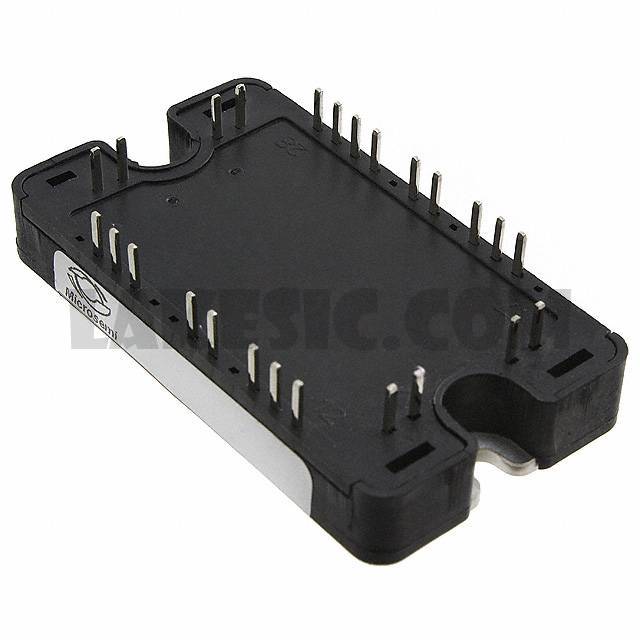

APTGF90H60T3G

Part NumberAPTGF90H60T3G

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT FULL BRIDGE SP3

DatasheetAPTGF90H60T3G

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Full Bridge Inverter 600V 120A 416W Chassis Mount SP3

To learn about the specification of APTGF90H60T3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF90H60T3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF90H60T3G.
We are offering APTGF90H60T3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF90H60T3G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF90H60T3G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Full Bridge Inverter

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

120A

Power - Max

416W

Vce(on) (Max) @ Vge, Ic

2.45V @ 15V, 100A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

4.4nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP3

Supplier Device Package

SP3
