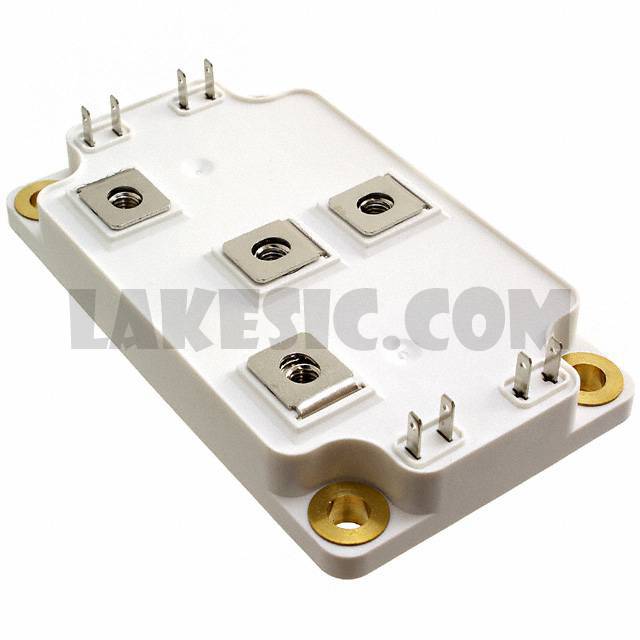

APTGL240TL120G

Part NumberAPTGL240TL120G

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT4 3LVL INVERT SP6

DatasheetAPTGL240TL120G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Three Level Inverter 1200V 305A 1000W Chassis Mount SP6

To learn about the specification of APTGL240TL120G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGL240TL120G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGL240TL120G.
We are offering APTGL240TL120G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGL240TL120G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGL240TL120G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Three Level Inverter

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

305A

Power - Max

1000W

Vce(on) (Max) @ Vge, Ic

2.2V @ 15V, 200A

Current - Collector Cutoff (Max)

2mA

Input Capacitance (Cies) @ Vce

12.3nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
