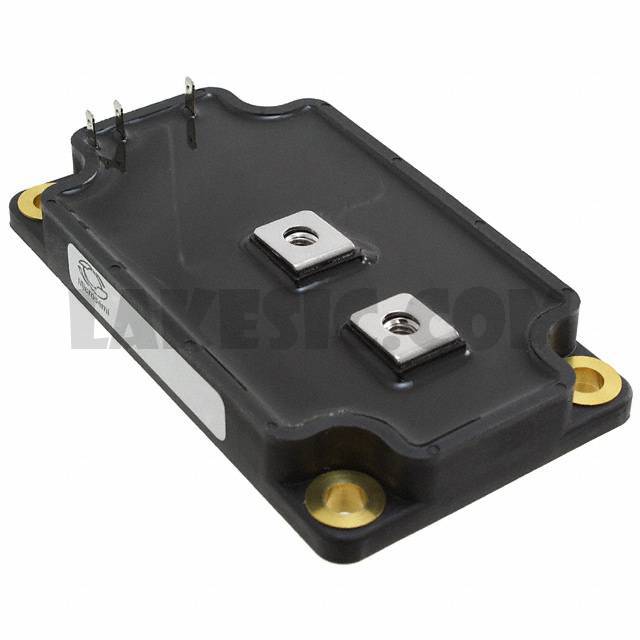

APTGL475U120DAG

Part NumberAPTGL475U120DAG

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT4 SER DIODE SP6

DatasheetAPTGL475U120DAG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Single 1200V 610A 2307W Chassis Mount SP6

To learn about the specification of APTGL475U120DAG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGL475U120DAG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGL475U120DAG.
We are offering APTGL475U120DAG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGL475U120DAG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGL475U120DAG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

610A

Power - Max

2307W

Vce(on) (Max) @ Vge, Ic

2.2V @ 15V, 400A

Current - Collector Cutoff (Max)

4mA

Input Capacitance (Cies) @ Vce

24.6nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
