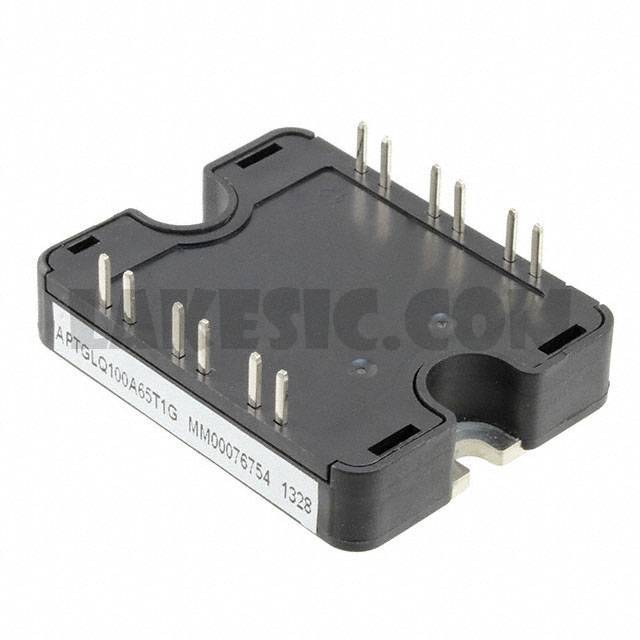

APTGLQ100A65T1G

Part NumberAPTGLQ100A65T1G

ManufacturerMicrosemi Corporation

DescriptionPWR MOD IGBT4 650V 200A SP1

DatasheetAPTGLQ100A65T1G

Package / CaseSP1

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Half Bridge 650V 200A 350W Through Hole SP1

To learn about the specification of APTGLQ100A65T1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGLQ100A65T1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGLQ100A65T1G.
We are offering APTGLQ100A65T1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGLQ100A65T1G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGLQ100A65T1G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

650V

Current - Collector (Ic) (Max)

200A

Power - Max

350W

Vce(on) (Max) @ Vge, Ic

2.3V @ 15V, 100A

Current - Collector Cutoff (Max)

100µA

Input Capacitance (Cies) @ Vce

6nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Through Hole

Package / Case

SP1

Supplier Device Package

SP1
