APTGT100A120D1G

Part NumberAPTGT100A120D1G

ManufacturerMicrosemi Corporation

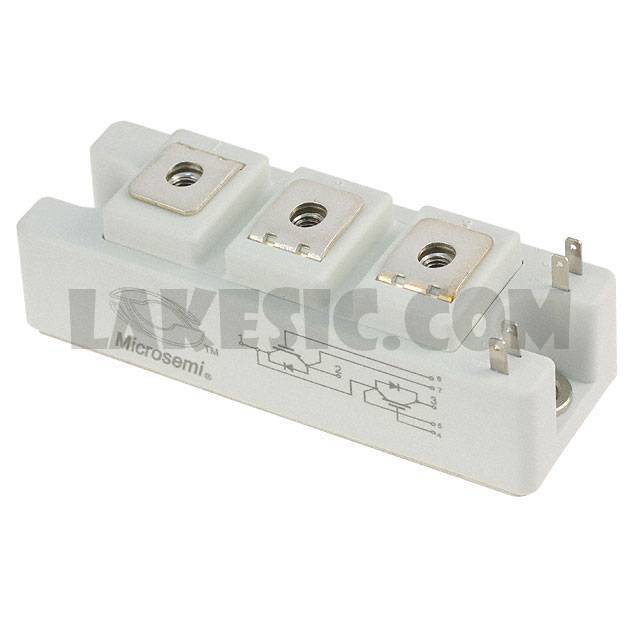

DescriptionIGBT MODULE TRENCH PHASE LEG D1

DatasheetPower Products Catalog

Package / CaseD1

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Half Bridge 1200V 150A 520W Chassis Mount D1

To learn about the specification of APTGT100A120D1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT100A120D1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT100A120D1G.
We are offering APTGT100A120D1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT100A120D1G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

Power Products Catalog

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

Trench Field Stop

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

150A

Power - Max

520W

Vce(on) (Max) @ Vge, Ic

2.1V @ 15V, 100A

Current - Collector Cutoff (Max)

3mA

Input Capacitance (Cies) @ Vce

7nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

Supplier Device Package
