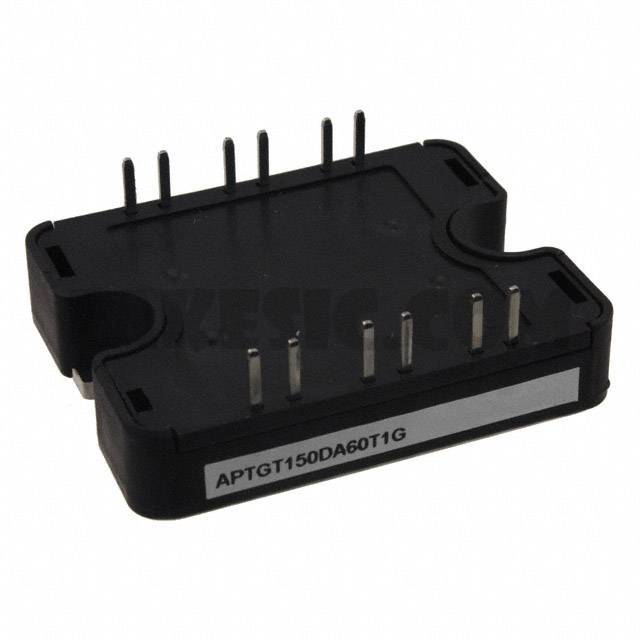

APTGT150DA60T1G

Part NumberAPTGT150DA60T1G

ManufacturerMicrosemi Corporation

DescriptionIGBT BOOST CHOP 600V 225A SP1

DatasheetAPTGT150DA60T1G

Package / CaseSP1

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Single 600V 225A 480W Chassis Mount SP1

To learn about the specification of APTGT150DA60T1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT150DA60T1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT150DA60T1G.
We are offering APTGT150DA60T1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT150DA60T1G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT150DA60T1G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

225A

Power - Max

480W

Vce(on) (Max) @ Vge, Ic

1.9V @ 15V, 150A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

9.2nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP1

Supplier Device Package

SP1
