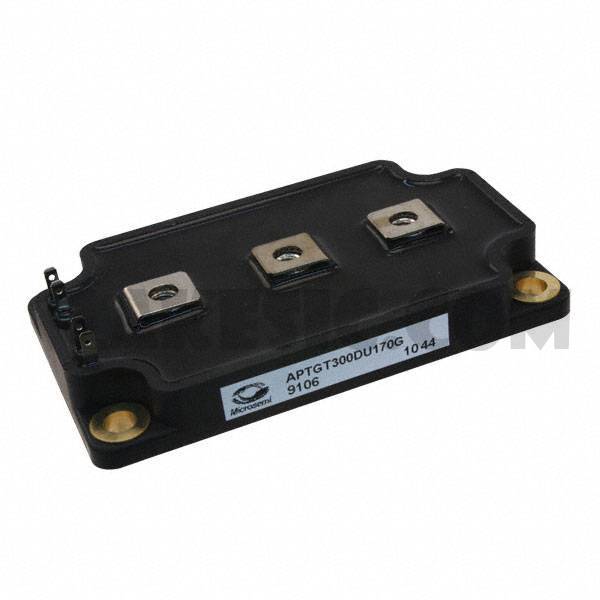

APTGT300DU170G

Part NumberAPTGT300DU170G

ManufacturerMicrosemi Corporation

DescriptionIGBT TRENCH DUAL SOURCE 1700V SP

DatasheetAPTGT300DU170G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Dual, Common Source 1700V 400A 1660W Chassis Mount SP6

To learn about the specification of APTGT300DU170G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT300DU170G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT300DU170G.
We are offering APTGT300DU170G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT300DU170G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT300DU170G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Dual, Common Source

Voltage - Collector Emitter Breakdown (Max)

1700V

Current - Collector (Ic) (Max)

400A

Power - Max

1660W

Vce(on) (Max) @ Vge, Ic

2.4V @ 15V, 300A

Current - Collector Cutoff (Max)

750µA

Input Capacitance (Cies) @ Vce

26.5nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
