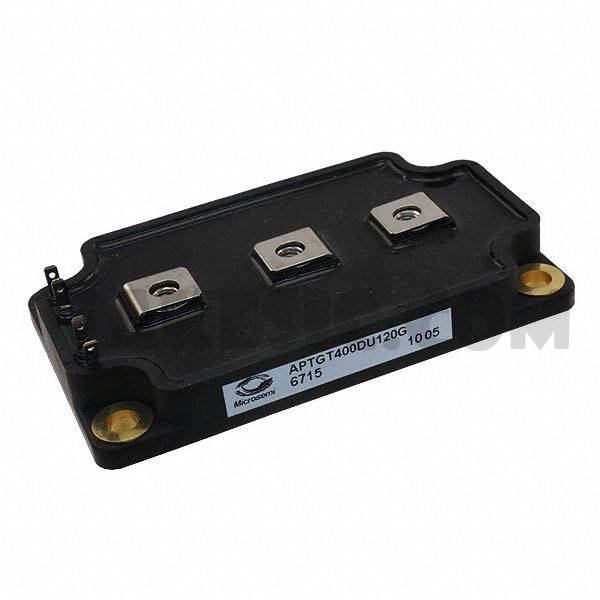

APTGT400DU120G

Part NumberAPTGT400DU120G

ManufacturerMicrosemi Corporation

DescriptionIGBT TRENCH DUAL SRC 1200V SP6

DatasheetAPTGT400DU120G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Dual, Common Source 1200V 560A 1785W Chassis Mount SP6

To learn about the specification of APTGT400DU120G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT400DU120G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT400DU120G.
We are offering APTGT400DU120G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT400DU120G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT400DU120G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Dual, Common Source

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

560A

Power - Max

1785W

Vce(on) (Max) @ Vge, Ic

2.1V @ 15V, 400A

Current - Collector Cutoff (Max)

750µA

Input Capacitance (Cies) @ Vce

28nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
