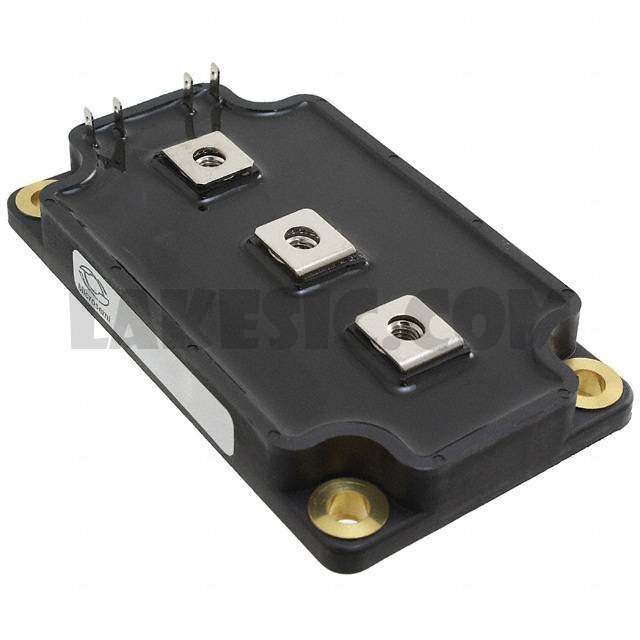

APTGT450A60G

Part NumberAPTGT450A60G

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT TRENCH PH LEG SP6

DatasheetAPTGT450A60G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Half Bridge 600V 550A 1750W Chassis Mount SP6

To learn about the specification of APTGT450A60G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT450A60G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT450A60G.
We are offering APTGT450A60G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT450A60G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT450A60G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

550A

Power - Max

1750W

Vce(on) (Max) @ Vge, Ic

1.8V @ 15V, 450A

Current - Collector Cutoff (Max)

500µA

Input Capacitance (Cies) @ Vce

37nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
