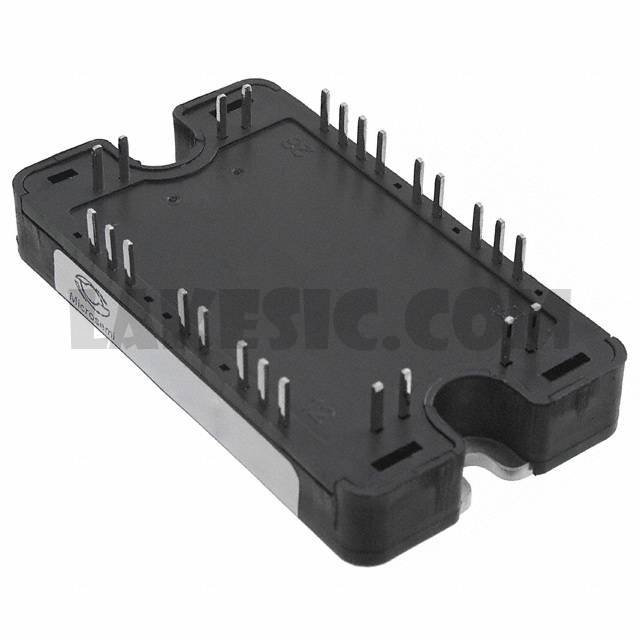

APTGT50DDA120T3G

Part NumberAPTGT50DDA120T3G

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT TRENCH BOOST SP3

DatasheetAPTGT50DDA120T3G

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Dual Boost Chopper 1200V 75A 270W Chassis Mount SP3

To learn about the specification of APTGT50DDA120T3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT50DDA120T3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT50DDA120T3G.
We are offering APTGT50DDA120T3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT50DDA120T3G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT50DDA120T3G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Dual Boost Chopper

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

75A

Power - Max

270W

Vce(on) (Max) @ Vge, Ic

2.1V @ 15V, 50A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

3.6nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP3

Supplier Device Package

SP3
