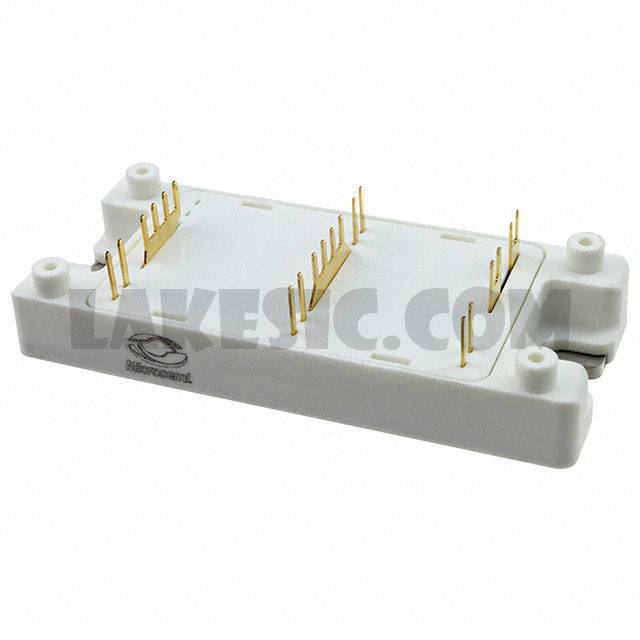

APTGT75DA120TG

Part NumberAPTGT75DA120TG

ManufacturerMicrosemi Corporation

DescriptionIGBT 1200V 110A 357W SP4

DatasheetAPTGT75DA120TG

Package / CaseSP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Single 1200V 110A 357W Chassis Mount SP4

To learn about the specification of APTGT75DA120TG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT75DA120TG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT75DA120TG.
We are offering APTGT75DA120TG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT75DA120TG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT75DA120TG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

110A

Power - Max

357W

Vce(on) (Max) @ Vge, Ic

2.1V @ 15V, 75A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

5.34nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP4

Supplier Device Package

SP4
