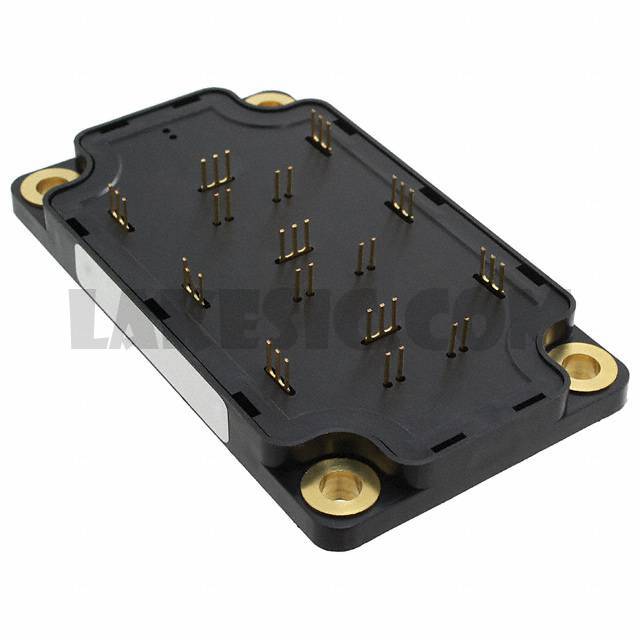

APTGT75TA120PG

Part NumberAPTGT75TA120PG

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT 3PHASE LEG SP6

DatasheetAPTGT75TA120PG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Three Phase 1200V 100A 350W Chassis Mount SP6-P

To learn about the specification of APTGT75TA120PG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT75TA120PG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT75TA120PG.
We are offering APTGT75TA120PG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT75TA120PG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT75TA120PG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Three Phase

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

100A

Power - Max

350W

Vce(on) (Max) @ Vge, Ic

2.1V @ 15V, 75A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

5.34nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6-P
