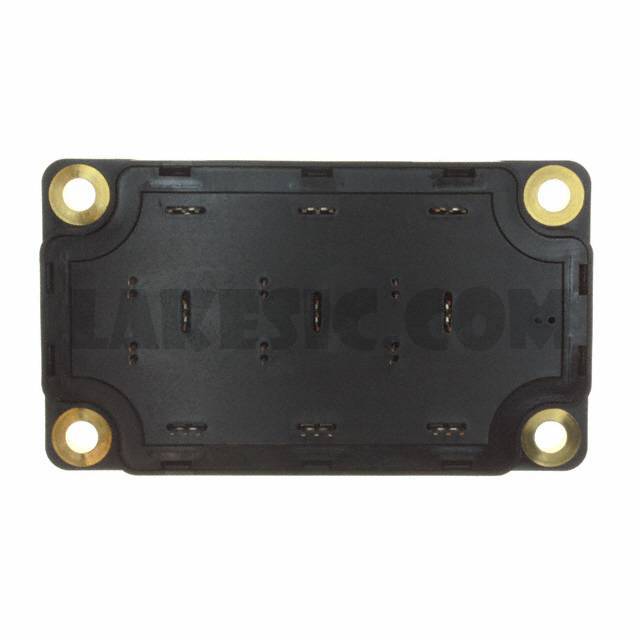

APTGT75TDU120PG

Part NumberAPTGT75TDU120PG

ManufacturerMicrosemi Corporation

DescriptionIGBT MOD TRPL DUAL SOURCE SP6-P

DatasheetAPTGT75TDU120PG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Triple, Dual - Common Source 1200V 100A 350W Chassis Mount SP6-P

To learn about the specification of APTGT75TDU120PG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT75TDU120PG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT75TDU120PG.
We are offering APTGT75TDU120PG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT75TDU120PG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT75TDU120PG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Triple, Dual - Common Source

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

100A

Power - Max

350W

Vce(on) (Max) @ Vge, Ic

2.1V @ 15V, 75A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

5.34nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6-P
