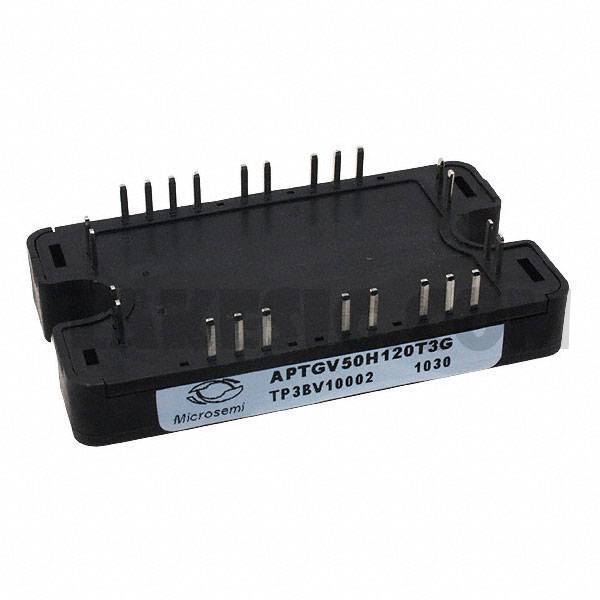

APTGV50H120T3G

Part NumberAPTGV50H120T3G

ManufacturerMicrosemi Corporation

To learn about the specification of APTGV50H120T3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGV50H120T3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGV50H120T3G.
We are offering APTGV50H120T3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Obsolete
IGBT Type	NPT, Trench Field Stop
Configuration	Full Bridge Inverter
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	75A
Power - Max	270W
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 50A
Current - Collector Cutoff (Max)	250µA
Input Capacitance (Cies) @ Vce	3.6nF @ 25V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-
Mounting Type	Chassis Mount
Package / Case	SP3
Supplier Device Package	SP3
