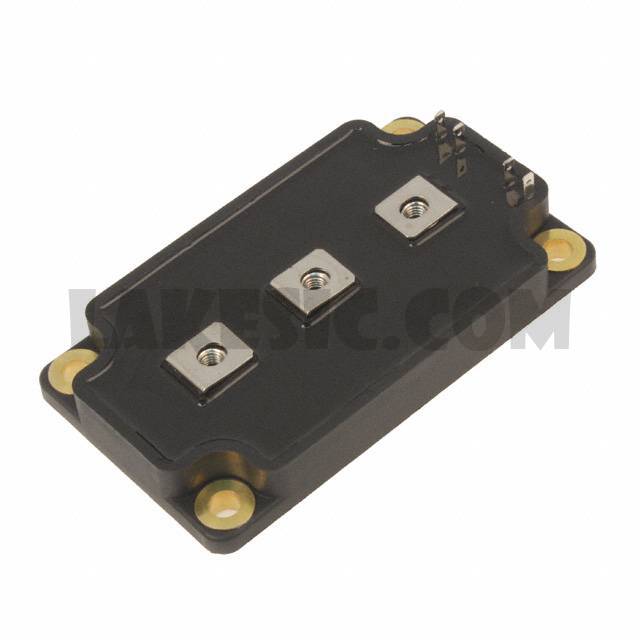

APTM100A13SCG

Part NumberAPTM100A13SCG

ManufacturerMicrosemi Corporation

DescriptionMOSFET 2N-CH 1000V 65A SP6

DatasheetAPTM100A13SCG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 1000V (1kV) 65A 1250W Chassis Mount SP6

To learn about the specification of APTM100A13SCG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM100A13SCG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM100A13SCG.
We are offering APTM100A13SCG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM100A13SCG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

APTM100A13SCG

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Active

FET Type

2 N-Channel (Half Bridge)

FET Feature

Standard

Drain to Source Voltage (Vdss)

1000V (1kV)

Current - Continuous Drain (Id) @ 25°C

65A

Rds On (Max) @ Id, Vgs

156mOhm @ 32.5A, 10V

Vgs(th) (Max) @ Id

5V @ 6mA

Gate Charge (Qg) (Max) @ Vgs

562nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

15200pF @ 25V

Power - Max

1250W

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
