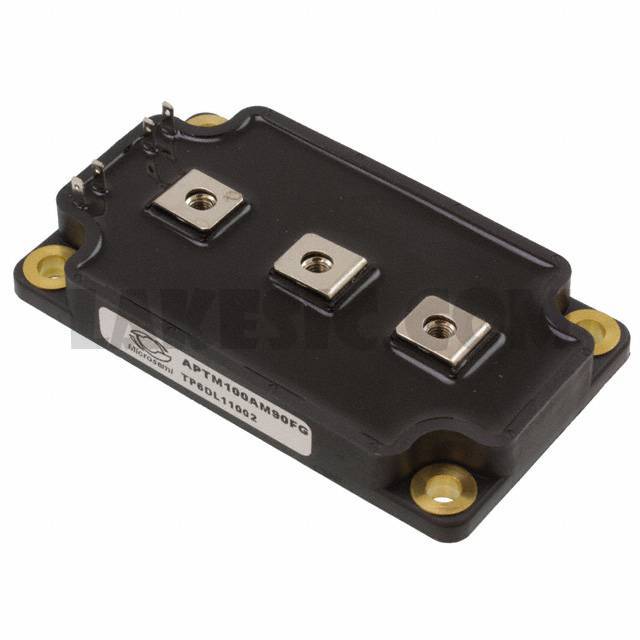

APTM100AM90FG

Part NumberAPTM100AM90FG

ManufacturerMicrosemi Corporation

DescriptionMOSFET 2N-CH 1000V 78A SP6

DatasheetAPTM100AM90FG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 1000V (1kV) 78A 1250W Chassis Mount SP6

To learn about the specification of APTM100AM90FG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM100AM90FG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM100AM90FG.
We are offering APTM100AM90FG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM100AM90FG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

APTM100AM90FG

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Active

FET Type

2 N-Channel (Half Bridge)

FET Feature

Standard

Drain to Source Voltage (Vdss)

1000V (1kV)

Current - Continuous Drain (Id) @ 25°C

78A

Rds On (Max) @ Id, Vgs

105mOhm @ 39A, 10V

Vgs(th) (Max) @ Id

5V @ 10mA

Gate Charge (Qg) (Max) @ Vgs

744nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

20700pF @ 25V

Power - Max

1250W

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
