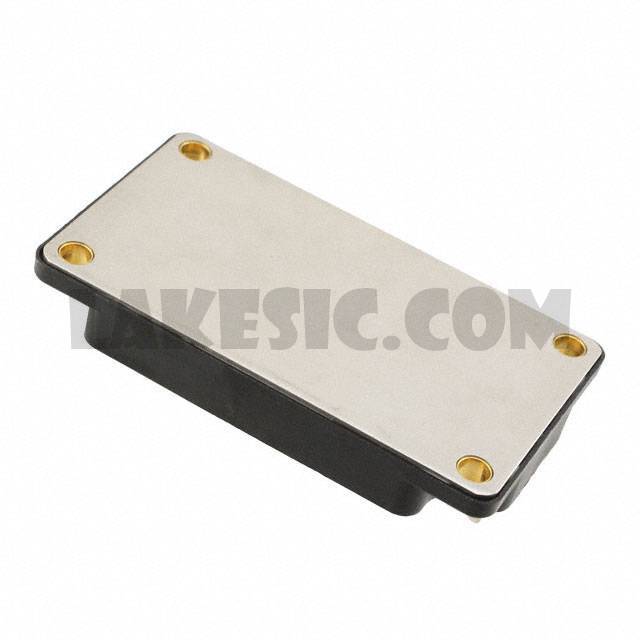

APTM100H18FG

Part NumberAPTM100H18FG

ManufacturerMicrosemi Corporation

DescriptionMOSFET 4N-CH 1000V 43A SP6

DatasheetAPTM100H18FG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 4 N-Channel (H-Bridge) 1000V (1kV) 43A 780W Chassis Mount SP6

To learn about the specification of APTM100H18FG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM100H18FG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM100H18FG.
We are offering APTM100H18FG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM100H18FG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

APTM100H18FG

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Active

FET Type

4 N-Channel (H-Bridge)

FET Feature

Standard

Drain to Source Voltage (Vdss)

1000V (1kV)

Current - Continuous Drain (Id) @ 25°C

43A

Rds On (Max) @ Id, Vgs

210mOhm @ 21.5A, 10V

Vgs(th) (Max) @ Id

5V @ 5mA

Gate Charge (Qg) (Max) @ Vgs

372nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

10400pF @ 25V

Power - Max

780W

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
