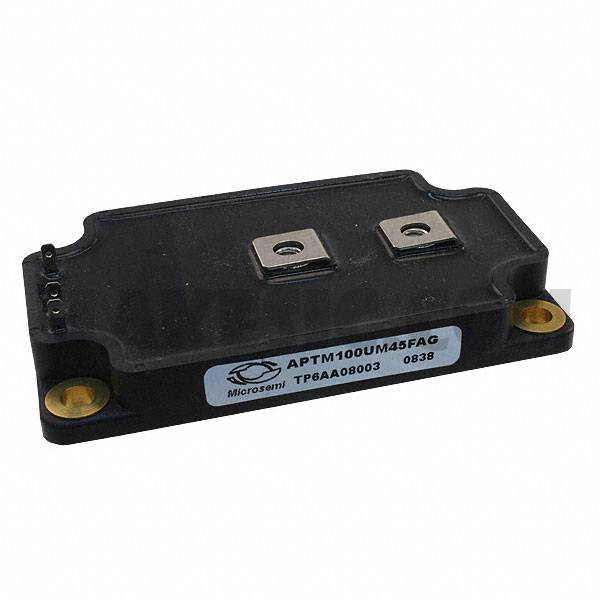

APTM100UM45FAG

Part NumberAPTM100UM45FAG

ManufacturerMicrosemi Corporation

DescriptionMOSFET N-CH 1000V 215A SP6

DatasheetAPTM100UM45FAG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1000V 215A (Tc) 5000W (Tc) Chassis Mount SP6

To learn about the specification of APTM100UM45FAG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM100UM45FAG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM100UM45FAG.
We are offering APTM100UM45FAG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM100UM45FAG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

APTM100UM45FAG

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

1000V

Current - Continuous Drain (Id) @ 25°C

215A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

52mOhm @ 107.5A, 10V

Vgs(th) (Max) @ Id

5V @ 30mA

Gate Charge (Qg) (Max) @ Vgs

1602nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

42700pF @ 25V

FET Feature

Power Dissipation (Max)

5000W (Tc)

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Supplier Device Package

SP6

Package / Case

SP6
