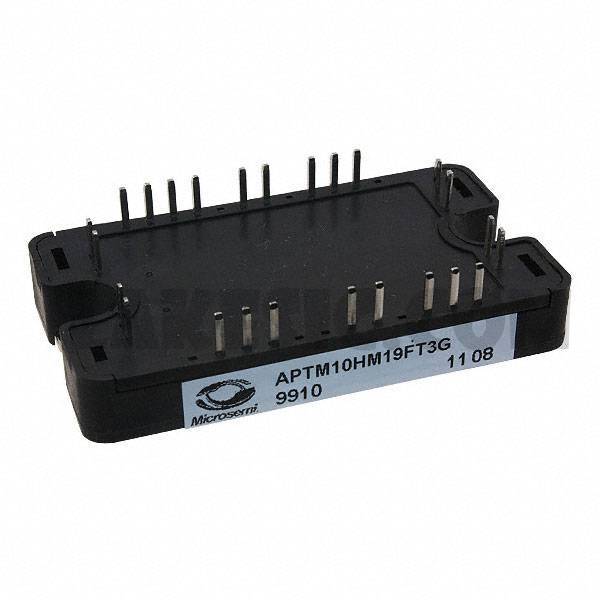

APTM10HM19FT3G

Part NumberAPTM10HM19FT3G

ManufacturerMicrosemi Corporation

DescriptionMOSFET 4N-CH 100V 70A SP3

DatasheetAPTM10HM19FT3G

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 4 N-Channel (H-Bridge) 100V 70A 208W Chassis Mount SP3

To learn about the specification of APTM10HM19FT3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM10HM19FT3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM10HM19FT3G.
We are offering APTM10HM19FT3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM10HM19FT3G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

APTM10HM19FT3G

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Active

FET Type

4 N-Channel (H-Bridge)

FET Feature

Standard

Drain to Source Voltage (Vdss)

100V

Current - Continuous Drain (Id) @ 25°C

70A

Rds On (Max) @ Id, Vgs

21mOhm @ 35A, 10V

Vgs(th) (Max) @ Id

4V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

200nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

5100pF @ 25V

Power - Max

208W

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP3

Supplier Device Package

SP3
